Applications :

• Single core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts.

Standards :

• BS 6853 -1a
• DIN 5510-1 1-4
• NFF 16-101 F0



Construction :

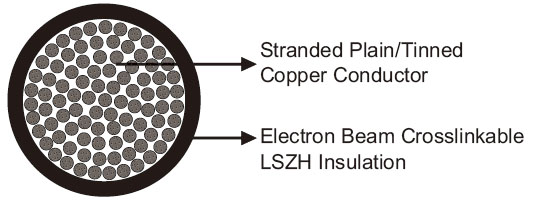

• Conductor : Circular Class 5 stranded plain or tinned copper to BS EN 60228: 2005 / BS 6360.
• Insulation : Electron beam crosslinkable standard wall LSZH compound.

Optional :

• FRA-SW-0.75S (Sheathed); FRA-SW-0.75S-OS (Screened & sheathed)
• FRA-SW-0.75SU-FR (Fire resistant & Unsheathed)

Electrical Characteristics at 20 °C :

• Nominal Conductor Cross Section	mm²	1.0	1.5	2.5	4.0	6.0	10	16
  Maximum Conductor Resistance	Ω/km	20	13.7	8.21	5.09	3.39	1.95	1.24
  Voltage Rating	KV	0.45/0.75

Mechanical and Thermal Properties :

• Minimum Bending Radius : 3×OD (OD<12mm); 4×OD (OD>12mm)
• Temperature Range : -40°C to +120°C.

Dimensions and Weight :



Cable Code	No. of cores& Nominal Conductor Cross Sectional Area No.×mm²	Nominal Diameter of Strands mm	Nominal Insulation Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
FRA-SW-0.75SU-1G1	1×1.0	32/0.2	0.8	3.9	28
FRA-SW-0.75SU-1G1.5	1×1.5	30/0.25	0.8	4.2	34
FRA-SW-0.75SU-1G2.5	1×2.5	50/0.25	0.8	4.6	41
FRA-SW-0.75SU-1G4	1×4.0	56/0.3	0.8	5.2	64
FRA-SW-0.75SU-1G6	1×6.0	84/0.3	0.9	6.4	93
FRA-SW-0.75SU-1G10	1×10.0	80/0.4	0.9	7.5	141
FRA-SW-0.75SU-1G16	1×16.0	126/0.4	1.1	8.6	203







Impact Resistant	Highly Flexible	UV Resistant	Oil Resistant	Weather Resistant	Low Toxicity





Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1	Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266	Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1	Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073	Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
